Kiosk/POS Applications
You are here

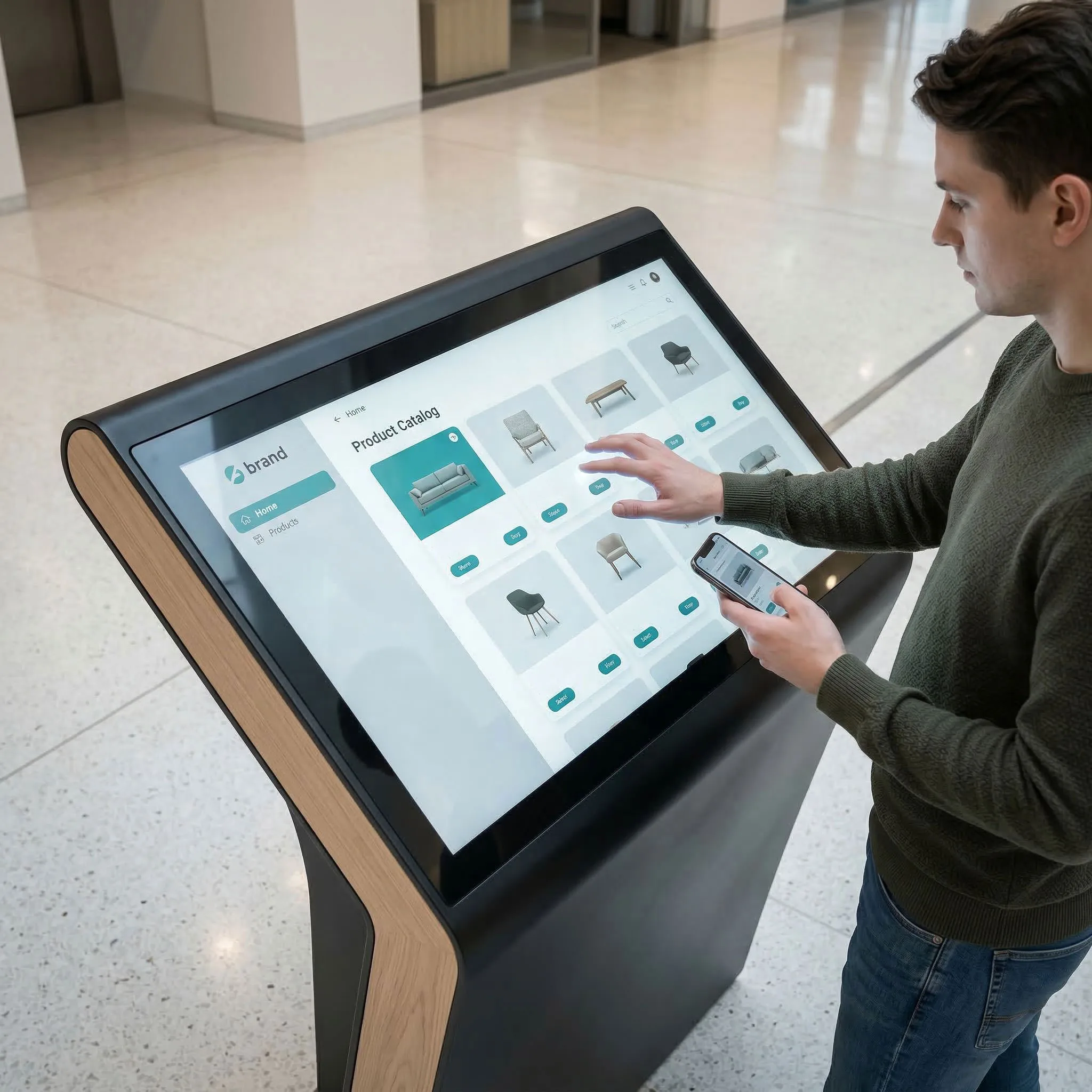

Displays for kiosk and POS applications are often exposed to harsh environmental conditions.
OLED Products
| Picture | Size | Part Number | Panel Size | Resolution | Color | Thickness | Bonding | IC | Interface | Connection Method | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0.7" | USMP-P007-096016WBI-A0 | 24 x 7.44 | 96 x 16 | W | 1.02 | COG | LD7054 | Parallel, SPI, I2C | Connector |
 |
 |
0.8" | USMP-P008-096032WBI-A0 | 28.5 x 11.5 | 96 x 32 | W | 1.22 | COG | SSD1307 | SPI, I2C | Hot Bar |
|
 |
0.91" | USMP-P010-128032WBI-A0 | 30 x 11.5 | 128 x 32 | W | 1.02 | COG | SSD1307 | SPI, I2C | Connector |
|
 |
0.96" | USMP-P010-128064WBI-C0 | 26.7 x 19.26 | 128 x 64 | W | 1.22 | COG | SSD1306ZBZ | Parallel, SPI, I2C | Hot Bar |
|
 |
1.1" | USMP-P19602 | 29 x 21 | 96 x 64 | Y | 1.61 | TAB | SSD1325 | Parallel, SPI, I2C | Hot Bar |
|
 |
1.1" | USMP-P19603 | 29 x 21 | 96 x 64 | W | 1.42 | TAB | SSD1325 | Parallel, SPI, I2C | Connector |
|
 |
1.1" | USMP-P19605 | 29 x 21 | 96 x 64 | Y | 1.61 | TAB | SSD1325 | Parallel, SPI, I2C | Connector |
|
 |
1.1" | USMP-P19601 | 29 x 21 | 96 x 64 | Y | 1.61 | TAB | SSD1325 | Parallel, SPI | Hot Bar |
|
 |
1.27" | USMP-P013-052160MBI-A0 | 14 x 38.5 | 52 x 160 | 262k | 1.02 | COG | SSD1357Z | SPI | Connector |
|
 |
1.29" | USMP-P013-128096LBI-A0 | 33 x 25.8 | 128 x 96 | 65k, 262k | 1.02 | COF | SSD1351UR1 | Parallel, SPI | Hot Bar |
|
 |
1.32" | USMP-P013-128096WBI-A0 | 32.5 x 29.2 | 128 x 96 | W | 1.42 | COG | SSD1307 | Parallel, SPI, I2C | Hot Bar |
|
 |
1.46" | USMP-P015-128128LBI-B0 | 33.5 x 33.5 | 128 x 128 | 65k, 262k | 1.42 | COF | SSD1351 | Parallel, SPI | Connector |
|
 |
1.5" | USMP-P015-128128WBI-A0 | 33.8 x 36.5 | 128 x 128 | W | 1.22 | COG | SSD1327 | Parallel, SPI, I2C | Hot Bar |
|
 |
1.6" | USMP-P016-128064YBI-A0 | 41.9 x 28 | 128 x 64 | Y | 1.42 | COF | SSD1325 | Parallel, SPI | Connector |
|
 |
1.6" | USMP-P22401 | 41.9 x 25.3 | 128 x 64 | Y | 1.61 | TAB | SSD1325 | Parallel, SPI, I2C | Connector |
|
 |
1.6" | USMP-P22402 | 41.9 x 25.3 | 128 x 64 | Y | 1.42 | TAB | SSD1325 | Parallel, SPI, I2C | Connector |
|
 |
1.6" | USMP-P22403 | 41.9 x 25.3 | 128 x 64 | Y | 1.42 | TAB | SSD1325 | Parallel, SPI, I2C | Connector |
|
 |
1.8" | USMP-P018-160128LBI-A0 | 42.7 x 33.4 | 160 x 128 | 65k, 262k | 1.85 | COF | SSD1353 | Parallel, SPI | Hot Bar |
|
 |
2.4" | USMP-P024-128022YBI-A0 | 63.3 x 20.8 | 128 x 22 | Y | 1.42 | COG | SSD1305 | Parallel, SPI, I2C | Hot Bar |
|
 |
2.4" | USMP-P024-128064WBI-B0 | 60.5 x 37 | 128 x 64 | W | 1.82 | COG | SSD0301 | Parallel, SPI, I2C | Connector |
|
 |
3.2" | USMP-P032-256064YBI-A0 | 87.4 x 28.5 | 256 x 64 | Y | 1.82 | COF | SSD1322 | Parallel, SPI | Connector |
|
 |
3.2" | USMP-P032-256064WBI-A0 | 87.4 x 28.5 | 256 x 64 | W | 2.01 | COF | SSD1322 | Parallel, SPI | Connector |
|
TFT Products
| Diagonal Size | Resolution | Part Number | Interface | Active Area | Viewing Angle | Contrast Ratio | Brightness | Operating Temp. | Touch Panel | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| 1.1" | 132*132 | USMP-T011-013013MDV-A0 | MIPI-SPI | 19.1268 x 19.1268 | 85 / 85 / 85 / 85 | 800 | 1000 | -30°~80° | No |
|
| 1.26" | 320*320 | USMP-T013-032032NDH-A0 | MIPI-SPI | 31.968 × 31.968 | 55 / 80 / 45 / 55 | 150 | 300 | -20°~70° | No |
|
| 1.38" | 220*220 | USMP-T014-022022NDH-A0 | MCU | 35.10 x 35.10 | 80 / 55 / 80 / 80 | 700 | 340 | -20°~70° | No |
|
| 2.2" | 240*320 | USMP-T022-024032NCJ-A0 | MPU | 38.48 x 44.64 | 80 / 80 / 80 / 80 | 300~700 | 400 | -20º~70º | No |
|
| 2.4" | 240*320 | USMP-LPS-T024-024032MFW-B0 | MCU | 80 / 80 / 80 / 80 | 1200 | 350 | -20~70° | Yes |
|
|
| 2.47" | 480*480 | USMP-T025-480x480-19100360 | MIPI-SPI | 62.64 x 62.64 | 85 / 85 / 85 / 85 | 1000 | 400 | -10°~60° | No |
|
| 2.95" | 432*432 | USMP-T030-432432NAV-A0 | Digital 24-bits RGB | 74.39 x 74.39 | 80 / 80 / 80 / 80 | 800 | 1000 | -30º~85º | No |
|
| 2.95" | 432*432 | USMP-T030-043043NAV-B0 | Serial RGB | 74.39 x 74.39 | 80 / 80 / 80 / 80 | 800 | 1000 | -30°~85° | No |
|
| 3.0" | 432*432 | USMP-T030-043043CAV-A0 | RGB | 74.39 x 74.39 | 80 / 80 / 80 / 80 | 800 | 850 | -30°~85° | Yes |
|
| 3.5" | 320*240 | USMP-T035-032024NAS-A0 | Digital 24-bits RGB | 70.08 x 52.56 | 45 / 50 / 50 / 50 | 200~250 | 280 | -20º~70º | No |
|
| 3.5" | 240*320 | USMP-T035-024032NDU-A0 | C-MOS 50 pins | 53.28 x 71.04 | 85 / 85 / 85 / 85 | 900 | 600 | -30º~85º | No |
|
| 4.21" | 680*680 | USMP-T042-680680NAV-A0 | RGB | 106.68 x 106.68 | 80 / 80 / 80 / 80 | 1000 | -20°~70° | No |
|
|
| 5" | 800*480 | USMP-LPS-T050-080048MFD-A0 | RGB | 80 / 80 / 80 / 80 | 1000 | 800 | -30~80° | Yes |
|
|
| 5" | 800*480 | USMP-T050-080048NDU-A0 | C-MOS 40 pins | 108 x 64.8 | 60 / 70 / 70 / 70 | 600 | 1000 | -30º~80º | No |
|
| 5.7" | 640*480 | USMP-T057-064048NCJ-A0 | 1 ch TTL | 115.2 x 86.4 | 65 / 65 / 75 / 75 | 600 | 500 | -30°~85° | No |
|
| 5.7" | 320*240 | USMP-T057-032024NDU-A0 | RGB | 115.2 x 86.4 | 80 / 60 / 80 / 80 | 800 | 800 | -20°~70° | No |
|
| 5.7" | 640*480 | USMP-T057-064048NAV-A0 | RGB | 115.2 x 86.4 | 60 / 40 / 70 / 70 | 300 | 900 | -20°~70° | No |
|
| 5.7" | 320*240 | USMP-T057-032024NAV-A0 | RGB | 115.2 x 86.4 | 50 / 70 / 70 / 70 | 490 | 350 | -20°~70° | No |
|
| 5.7" | 320*240 | USMP-T057-032024NAF-A0 | RGB | 115.20 x 86.4 | 50 / 65 / 65 / 65 | 450 | 1200 | -20°~70° | No |
|
| 5.7" | 640*480 | USMP-T057-064048NBQ-A0 | 1 ch TTL | 115.2 x 86.4 | 70 / 70 / 80 / 80 | 800 | 450 | -20°~85° | No |
|
| 6.5" | 640*480 | USMP-T065-064048NDN-A0 | 1 ch LVDS | 132.48 x 99.36 | 80 / 80 / 70 / 70 | 600 | 700 | -30º~85º | No |
|
| 7" | 800*480 | USMP-T070-080048NAV-A0 | RGB | 152.4 x 91.44 | 80 / 80 / 80 / 80 | 600 | 500 | -20º~70º | No |
|
| 7" | 800*480 | USMP-T070-080048CAV-A0 | LVDS | 152.4 x 91.44 | 65 / 65 / 70 / 70 | 400 | 850 | -30°~80° | Yes |
|
| 7" | 800*480 | USMP-T070-080048NDU-B0 | 20-pin LVDS | 152.4 x 91.44 | 85 / 85 / 85 / 85 | 1000 | 800 | -40º~85º | No |
|
| 7" | 1920*1080 | USMP-T070-192108NDU-A0 | 20-pin LVDS | 169 x 104 x 10 | 85 / 85 / 85 / 85 | 800 | 700 | -20º~70º | No |
|
| 7" | 1280*768 | USMP-LPS-T070-128076MFW-A0 | LVDS | 80 / 80 / 80 / 80 | 1400 | 1300 | -30~80° | Yes |
|
|
| 7" | 800*480 | USMP-T070-080048CCJ-A0 | 6bit LVDS | 152.4 x 91.44 | 65 / 65 / 70 / 70 | 400 | 850 | -20°~70° | PCap |
|
| 7" | 800*480 | USMP-T070-080048RCJ-A0 | RGB | 152.4 x 91.44 | 60 / 60 / 70 / 70 | 400 | 400 | -20º~70º | Yes |
|
| 7" | 800*480 | USMP-VC070WV-03L-TP-2 | 6bit LVDS | 152.4 x 91.44 | 65 / 65 / 70 / 70 | 300 | 850 | -20°~70° | PCap |
|
| 7" | 800*480 | USMP-T070-080048NDN-A0 | 1 ch LVDS 8 bit | 152.4 x 91.44 | 80 / 80 / 60 / 80 | 500 | 400 | -30º~85º | No |
|
| 7" | 800*480 | USMP-T070-080048NDU-A0 | 20-pin LVDS | 152.4 x 91.44 | 85 / 85 / 85 / 85 | 600 | 450 | -30º~80º | No |
|
| 8" | 1024*600 | USMP-T080-102060NBQ-A0 | LVDS | 176.6 × 99.36 | 85 / 85 / 85 / 85 | 1000 | 750 | -30º~85º | No |
|
| 8" | 800*600 | USMP-T080-080060NDU-A0 | LVDS | 174 x 104.4 | 60 / 80 / 80 / 80 | 800 | 1500 | -30º~80º | No |
|
| 8.4" | 800*600 | USMP-T084-080060NDN-A0 | 1 ch LVDS 8 bit | 170.4 x 127.8 | 80 / 80 / 80 / 60 | 600 | 450 | -30º~85º | No |
|
| 10.1" | 1280*1200 | USMP-T101-192120NDU-A0 | LVDS | 217.44 x 135.9 | 85 / 85 / 85 / 85 | 800 | 800 | -30º~85º | No |
|
| 10.1" | 1280*800 | USMP-LPS-T101-128080MFD-A0 | MIPI-SPI | 80 / 80 / 80 / 80 | 1000 | 1000 | -30~80° | Yes |
|
|
| 10.1" | 1024*600 | USMP-T101-102060NAS-A0 | LVDS | 222.72 x 125.28 | 80 / 80 / 80 / 80 | 500 | 500 | -30º~85º | No |
|
| 10.4" | 800*600 | USMP-T104-080060NCJ-A0 | 6bit LVDS | 211.2 x 158.4 | 70 / 70 / 50 / 60 | 500 | 500 | -30º~80º | No |
|
| 10.4" | 1024*768 | USMP-T104-102076NDU-A0 | 20-pin LVDS | 211.2 x 158.4 | 60 / 70 / 75 / 75 | 800 | 1200 | -20º~70º | No |
|
| 10.4" | 640*480 | USMP-T104-064048NDN-A0 | 1 ch TTL | 211.2 x 158.4 | 80 / 80 / 60 / 70 | 700 | 400 | -20º~80º | No |
|
| 10.4" | 800*600 | USMP-T104-080060NDU-A0 | 20-pin LVDS | 211.2 x 158.4 | 60 / 80 / 80 / 80 | 800 | 1500 | -30º~80º | No |
|
| 12.1" | 800*600 | USMP-T121-010076NAF-A0 | LVDS | 245.76 x 184.32 | 70 / 70 / 80 / 80 | 700 | 600 | -30º~80º | No |
|
| 12.1" | 800*600 | USMP-T121-080060NDN-A0 | 8-bit | 246 x 184.5 | 80 / 80 / 65 / 75 | 700 | 450 | -30º~85º | No |
|
| 12.3" | 1920*720 | USMP-T123-192072NBQ-A0 | LVDS | 292.608 x 109.728 | 85 / 85 / 85 / 85 | 1000 | 750 | -30 ~ 85° | No |
|
| 12.3" | 1920*720 | USMP-T123-192072NDV-A0 | LVDS | 292.023 x 109.512 | 85 / 85 / 85 / 85 | 1000 | 700 | -30 ~ 80° | No |
|
| 12.3" | 1920*720 | USMP-T123-192072CDV-A2 | LVDS | 292.032 x 109.512 | 85 / 85 / 85 / 85 | 1000 | 1000 | -30°~80° | CTP |
|
| 19" | 1280*1024 | USMP-T190-128102NDN-A0 | 2 ch LVDS | 376.32 x 301.056 | 89 / 89 / 89 / 89 | 2000 | 600 | 0 ~ 50° | No |
|
| 22" | 1680*1050 | USMP-T220-168105NDN-A0 | 2 ch LVDS | 473.76 x 296.1 | 89 / 89 / 89 / 89 | 2000 | 250 | 0º~50º | No |
|
| 23" | 1920 x 1080 | USMP-M230HGE-P20 | 2 ch LVDS | 509.184 x 286.416 | 85 / 85 / 85 / 85 | 1000 | 0°~50° | No |
|
|
| 27" | 1920*1080 | USMP-T27-192108MEH-TBD | VGA/DVI-D/HDMI | 597.6 x 336.15 | 89 / 89 / 89 / 89 | 1000 | 1700 | -30º~80º | Yes |
|
| 28" | 3480*2160 | USMP-T280-384216NBQ-A0 | 51 pins 8 lane –V by 1 | 620.93 x 341.28 | 80 / 80 / 85 / 85 | 1000 | 300 | 0º~50º | No |
|
| 50" | 3840*2160 | USMP-T500-384216NBQ-A0 | 8 lane V by 1 | 1095.84 x 616.41 | 88 / 88 / 88 / 88 | 4000 | 500 | 0º~50º | No |
|
Open Frame Monitor Products
| Panel Size | Part Number | Resolution | Active Size | Brightness | Display Colors | Operating Temp. | Pixel Pitch | Viewing Angle | Datasheet |
|---|---|---|---|---|---|---|---|---|---|
| 7" | USMP-F070-102060RBZ-A0 | 1024 x 600 | 156.6 x 90 | 400 | 16.7M | -30º~85º | 0.150 x 0.150 | 75º / 75º / 75º / 75º |
|
| 9.7" | USMP-F097-102076CBZ-A0 | 1024 x 768 | 196.61 x 147.46 | 260 | 16.2M | 0º~50º | 0.192 x 0.192 | 85º / 85º / 85º / 85º |
|
| 10.1" | USMP-F101-128080CBZ-A0 | 1280 x 800 | 216.96 x 135.60 | 300 | 16.2M | -20º~60º | 0.1695 x 0.1695 | 85º / 85º / 85º / 85º |
|
| 10.4" | USMP-F104-102076CBZ-A0 | 1024 x 768 | 211.2 x 158.4 | 350 | 16.7M/262K | 0º~50º | 0.2055 x 0.2055 | 85º / 85º / 85º / 85º |
|
| 12.1" | USMP-F121-102076CBZ-A0 | 1024 x 768 | 245.76 x 184.32 | 350 | 16.7M | -20º~70º | 0.24 x 0.24 | 80º / 80º / 80º / 80º |
|
| 14" | USMP-F140-192108CBZ-A0 | 1920 x 1080 | 309.312 x 173.988 | 250 | 262K | 0º~50º | 0.264 x 0.264 | 85º / 85º / 85º / 85º |
|
| 14" | USMP-F140-192108CBZ-B0 | 1920 x 1080 | 309.312 x 173.988 | 250 | 262k | 0º~50º | 0.1611 x 0.1611 | 85º / 85º / 85º / 85º |
|
| 15" | USMP-F150-102076RBZ-A0 | 1024 x 768 | 304.128 x 228.096 | 300 | 16.2M/262k | -10º~70º | 0.297 x 0.297 | 89º / 89º / 89º / 89º |
|
| 15" | USMP-F150-102076RBZ-B0 | 1024 x 768 | 304.128 x 228.096 | 250 | 262k | -10º~70º | 0.297 x 0.297 | 50º / 50º / 60º / 60º |
|
| 15" | USMP-F150-102076CBZ-A0 | 1024 x 768 | 304.128 x 228.096 | 250 | 16.2M/262k | -20º~70º | 0.297 x 0.297 | 80º / 80º / 70º / 70º |
|
| 15.6" | USMP-F156-192108CBZ-A0 | 1920 x 1080 | 344.16 x 193.59 | 350 | 16.7M | -10º~70º | 0.17925 x 0.17925 | 60º / 60º / 70º / 70º |
|
| 17" | USMP-F170-128102CBZ-C0 | 1280 x 1024 | 337.920 x 270.336 | 350 | 16.7M | -0º~50º | 0.264 x 0.264 | 85º / 85º / 80º / 80º |
|
| 17" | USMP-F170-128102RBZ-A0 | 1280 x 1084 | 337.92 x 270.33 | 250 | 16.7M | 0º~70º | 0.24 x 0.24 | 80º / 80º / 85º / 85º |
|
| 17" | USMP-F170-128102CBZ-A0 | 1280 x 1024 | 337.920 x 270.336 | 250 | 16.7M | -20º~60º | 0.264 x 0.264 | 85º / 85º / 80º / 80º |
|
| 17" | USMP-F170-128102CBZ-B0 | 1280 x 1024 | 337.920 x 270.336 | 350 | 16.7M | -20º~60º | 0.264 x 0.264 | 85º / 85º / 80º / 80º |
|
| 18.5" | USMP-OFIA185-W-01C | 1366 x 768 | 409.8 x 230.4 | 250 | 16.7M | 0°~50° | 0.3 x 0.3 | 85º / 85º / 80º / 80º |
|
| 18.5" | USMP-OFIA185-W-01B | 1366 x 768 | 409.8 x 230.4 | 250 | 16.7M | 0°~50° | 0.3 x 0.3 | 85º / 85º / 80º / 80º |
|
| 18.5" | USMP-F185-192108CBZ-A0 | 1920 x 1080 | 408.96 x 230.04 | 350 | 16.7M | -20º~70º | 0.213 x 0.213 | 89º / 89º / 89º / 89º |
|
| 19" | USMP-F190-128102CBZ-A0 | 1280 x 1024 | 376.32 x 301.06 | 250 | 16.7M | -20º~50º | 0.264 x 0.264 | 85º / 85º / 80º / 80º |
|
| 21.5" | USMP-F215-192108CBZ-B0 | 1920 x 1080 | 476.64 x 268.116 | 250 | 16.7M | 0º~50º | 0.24825 x 0.24825 | 89º / 89º / 89º / 89º |
|
| 21.5" | USMP-F215-192108CBZ-C0 | 1920 x 1080 | 476.064 x 267.786 | 450 | 16.7M | 0º~50º | 0.24795 x 0.24795 | 89º / 89º / 89º / 89º |
|
| 21.5" | USMP-F215-192108CBZ-D0 | 1920 x 1080 | 476.064 x 267.786 | 250 | 16.7M | 0º~50º | 0.24825 x 0.24825 | 89º / 89º / 89º / 89º |
|
| 21.5" | USMP-F215-192108CBZ-A0 | 1920 x 1080 | 476.64 x 268.116 | 250 | 16.7M | 0º~50º | 0.24825 x 0.24825 | 89º / 89º / 89º / 89º |
|
| 31.5" | USMP-F315-192108CBZ-A0 | 1920 x 1080 | 698.4 x 392.85 | 300 | 16.7M | 0º~50º | 0.12125 x 0.12125 | 89º / 89º / 89º / 89º |
|
| 32" | USMP-F320-192108CBZ-A0 | 1920 x 1080 | 698.4 x 392.85 | 300 | 16.7M | 0º~50º | 0.12125 x 0.12125 | 89º / 89º / 89º / 89º |
|
| 43" | USMP-F430-192108CBZ-A0 | 1920 x 1080 | AMG-43IPAM01T1-en | 300 | 16.7M | 0º~50º | 89º / 89º / 89º / 89º |
|
High usage and vandalism are hurdles most design engineers need to overcome in the public realm. US Micro Products offers a wide variety of products specifically designed for these conditions. Specializing in custom displays, we offer a wide variety of display solutions to Kiosk manufacturers.
These are some display features required for Kiosk and POS applications:
| OPTIONAL FEATURES: | |
|---|---|
| High brightness for outdoor readability | High image quality (high resolution and high contrast) |
| Low power consumption | High color gamut |
| Ruggedized design | Wide view angles |
| High reliability test requirement | Privacy film |
| Wide temperature range | Low cost solutions available |
| Long display lifetime | |
| Long product support |
Our Display Engineers will analyze your requirements and design the best solution for your specific application. Once we design a solution, we will manufacture, do quality control and deliver a high quality display at the best value. To find out more about our Engineered Display Solutions Process, visit our Custom Displays page.
